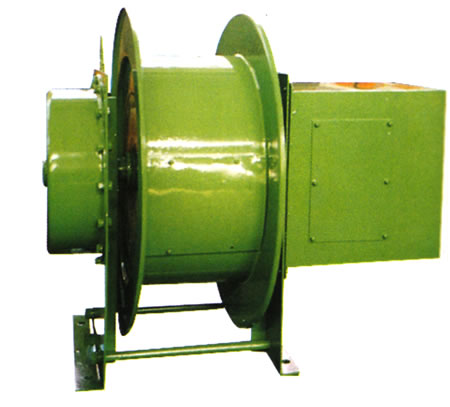

彈力電攬卷筒滑環外裝式

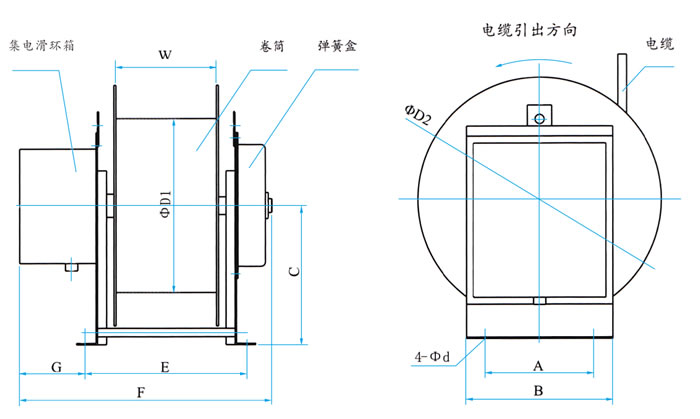

外形尺寸圖

外形尺寸表（注：三條彈簧以下不帶安裝座）

外形序號 尺寸		A	B	C	D1	D2	D	E	F	G	W	重量
15m、20m系列	1	310	360	400	500	700	15	420	700	190	250	140
	2							420	795	190	250	170
	3							470	845	190	300	220
	4							420	775	265	250	155
	5							420	870	265	250	185
	6							470	940	190	300	250
25m、30m系列	7	310	360	450	600	800	18	420	795	190	250	220
	8	310	360	450	600	800	18	470	845	190	300	250
	9	310	360	450	600	800	18	470	940	190	300	280
	10	310	360	450	600	800	18	470	920	265	300	260
	11	310	360	450	600	800	18	420	775	265	250	250
	12	310	360	450	600	800	18	420	770	190	250	220

選型主要事項：

1、本系列卷筒僅適應于第1頁安裝方式示意圖中方式D，即卷筒安裝在移動物體上。

2、50米及50米以上系列的電纜用戶自備。

主要技術參數

電纜型號規格	允許電流 A（40℃時）		15m系列	外形序號	20m系列	外形序號	25m系列	外形序號	30m系列	外形序號
芯數×截面 (mm²)	連續	1分開 1分關
YC型 2×6	40		/	/	/	/	JTA50-25-2-II	1	/	/
			/		/		JTB50-25-2-II		/
YC型 2×10	58		JTA75-15-2-II	1	JTA75-20-2-II	1	JTA75-25-2-II	1	JTA75-30-2-II	7
			JTB75-15-2-II		JTB75-20-2-II		JTB75-25-2-II		JTB75-30-2-II
YC型 2×16	77		JTA100-15-2-II	1	JTA100-20-2-II	2	JTA100-25-2-II	2	JTA100-30-2-II	8
			JTB100-15-2-II		JTB100-20-2-II		JTB100-25-2-II		JTB100-30-2-II
YC型 2×25	106		JTA135-15-2-II	3	JTA135-20-2-II	3	JTA135-25-2-II	3	JTA135-30-2-II	9
			JTB135-15-2-II		JTB135-20-2-II		JTB135-25-2-II		JTB135-30-2-II
YC型 2×35	132		JTA170-15-2-II	3	JTA170-20-2-II	3	JTA170-25-2-II	6	/	/
			JTB170-15-2-II		JTB170-20-2-II		JTB170-25-2-II		/
YC型 3×6+1×4	35		JTA50-15-4-II	1	JTA50-20-4-II	1	JTA50-25-4-II	1	JTA50-30-4-II	7
			JTB50-15-4-II		JTB50-20-4-II		JTB50-25-4-II		JTB50-30-4-II
			JTC50-15-4-II		JTC50-20-4-II		JTC50-25-4-II	1	JTC50-30-4-II
			JTD50-15-4-II		JTD50-20-4-II		JTD50-25-4-II		JTD50-30-4-II	12
			JTE50-15-4-II		/		JTE50-25-4-II	1	JTE65-30-4-II	7
			JTF50-15-4-II		/		JTF50-25-4-II		JTF65-30-4-II
YC型 3×10+1×6	50		JTA65-15-4-II	1	JTA65-20-4-II	1	JTA65-25-4-II	2	JTA65-30-4-II	8
			JTB65-15-4-II		JTB65-20-4-II		JTB65-25-4-II		JTB65-30-4-II
			JTC65-15-4-II		JTC65-20-4-II	1	JTC65-25-4-II	1	JTC65-30-4-II	8
			JTD65-15-4-II		JTD65-20-4-II		JTD65-25-4-II		JTD65-30-4-II	12
			JTE65-15-4-II	1	JTE65-20-4-II	2	JTE65-25-4-II	3	JTE65-30-4-II	9
			JTF65-15-4-II		JTF65-20-4-II		JTF65-25-4-II		JTF65-30-4-II
YC型 3×16+1×6	66		JTA85-15-4-II	1	JTA85-20-4-II	2	JTA85-25-4-II	3	JTA85-30-4-II	9
			JTB85-15-4-II		JTB85-20-4-II		JTB85-25-4-II		JTB85-30-4-II
			JTC85-15-4-II	1	JTC85-20-4-II	1	JTC85-25-4-II	3	JTC85-30-4-II	8
			JTD85-15-4-II		JTD85-20-4-II		JTD85-25-4-II		JTD85-30-4-II	8
			JTE85-15-4-II	2	JTE85-20-4-II	2	JTE85-25-4-II	6	JTE85-30-4-II	9
			JTF85-15-4-II		JTF85-20-4-II	2	JTF85-25-4-II		JTF85-30-4-II
YC型 3×25+1×10	91		JTA120-15-4-II	2	JTA120-20-4-II	2	JTA120-25-4-II	6	JTA120-30-4-II	/
			JTB120-15-4-II		JTB120-20-4-II		JTB120-25-4-II		JTB120-30-4-II
			JTC120-15-4-II	1	JTC120-20-4-II	2	JTC120-25-4-II	3	JTC120-30-4-II	8
			JTD120-15-4-II	2	JTD120-20-4-II		JTD120-25-4-II		JTD120-30-4-II
			JTE120-15-4-II	2	JTE120-20-4-II	2	/ /		/	/
			JTF120-15-4-II		JTF120-20-4-II				/
CRHF型 10×2.5	12		JTA20-15-8-II	4	JTA20-15-8-II	4	JTA20-25-8-II	4	JTA20-30-8-II	10
			JTB20-15-8-II		JTB20-15-8-II		JTB20-25-8-II		JTB20-30-8-II
			JTC20-15-8-II		JTC20-15-8-II		JTC20-25-8-II		JTC20-30-8-II	11
			JTD20-15-8-II		JTD20-15-8-II		JTD20-25-8-II		JTD20-30-8-II
			JTE20-15-8-II	4	/		/		/	/
			JTF20-15-8-II		/		/		/
